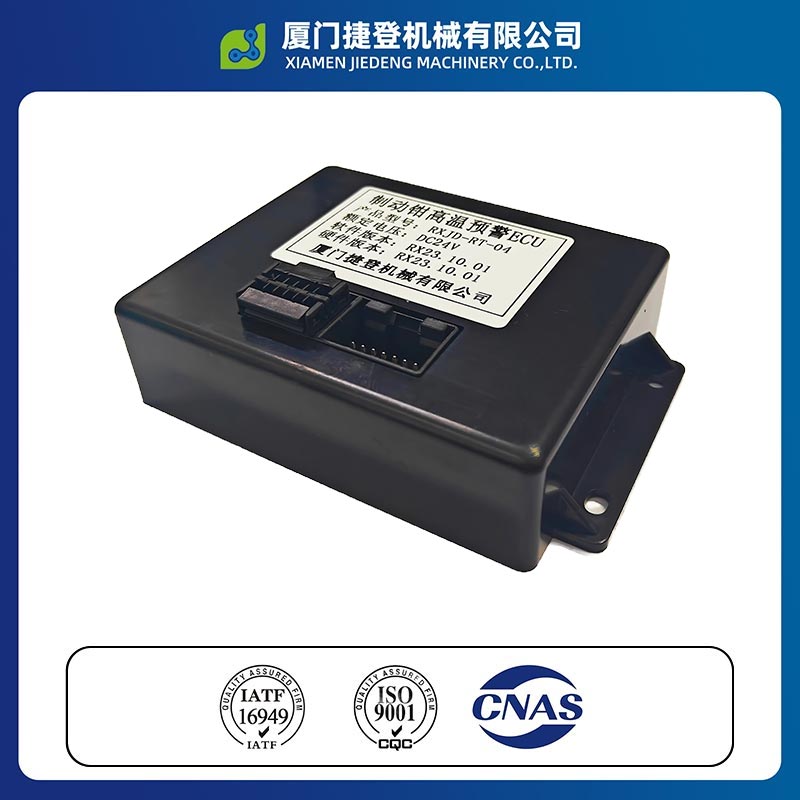

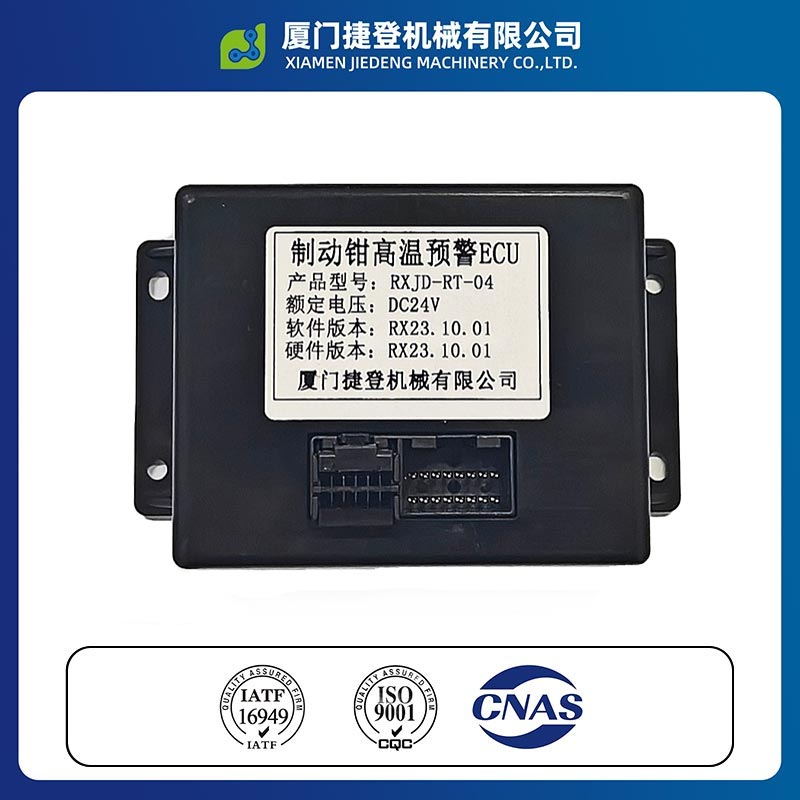

The 24V brake caliper high-temperature warning controller of model RXJD-RT-04 supplied by Xiamen Jiedeng is the core control unit of the entire system. The hardware can be compatible with 2 to 10 temperature measurement signal inputs and is suitable for a wide range of commercial vehicles including double-axle, triple-axle, articulated vehicles, construction waste trucks, and buses. The body structure is compact and is specially designed for the size of vehicle electrical compartments. There is no need to modify the original vehicle structure. It can be directly matched and used for both factory pre-installation and aftermarket market installation.
1. It can quickly aggregate various temperature measurement signals and accurately identify abnormal high temperatures of the brake calipers caused by vehicle dragging brakes or frequent braking;
2. It supports manual setting of the warning temperature at the site, with a adjustable range of 60℃ to 120℃. The factory default is 90℃;
3. When the temperature exceeds the limit, it can simultaneously connect with the instrument and the host to achieve dual-end alarm reminders;
4. It has an intelligent self-check function, automatically identifying circuit breakers and short-circuit faults;
5. It can predict potential risks in advance, effectively avoiding safety risks such as brake overheating and vehicle fire.

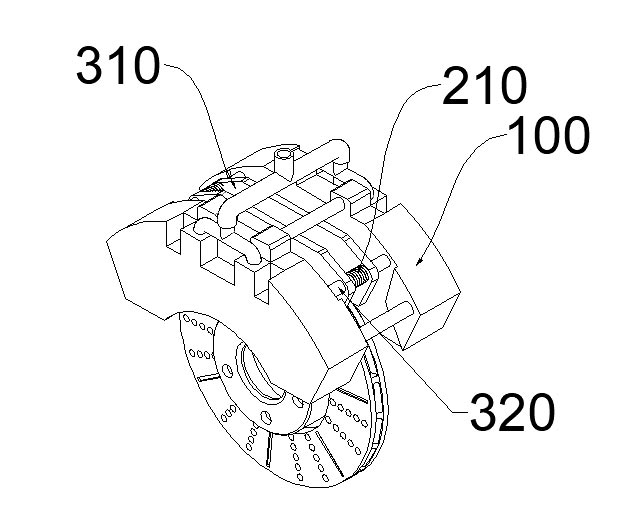

When the high-temperature warning is triggered, the controller immediately outputs a control signal, which activates the
stepper motor to start the auxiliary braking mechanism.
Effectively share the braking load of vehicles, slow down the heating rate of the brake calipers, prevent the brake pads
from aging too quickly, prevent the brake fluid from failing due to high temperature, and avoid a decrease in braking
force. It is particularly suitable for mountainous areas and long downhill roads, enhancing driving safety.
The working environment temperature range of the controller is -40℃ to 85℃, suitable for various complex high and low temperature conditions; compatible with 12~34V vehicle-wide voltage, with built-in power supply reverse connection protection, and featuring strong vehicle-mounted shock resistance and weather resistance performance.
Developed strictly in accordance with the GB7258-2017 national standard specifications, it is suitable for commercial vehicles and new energy vehicles. The wiring compatibility is high, making it suitable for large-scale batch matching and modification markets.
