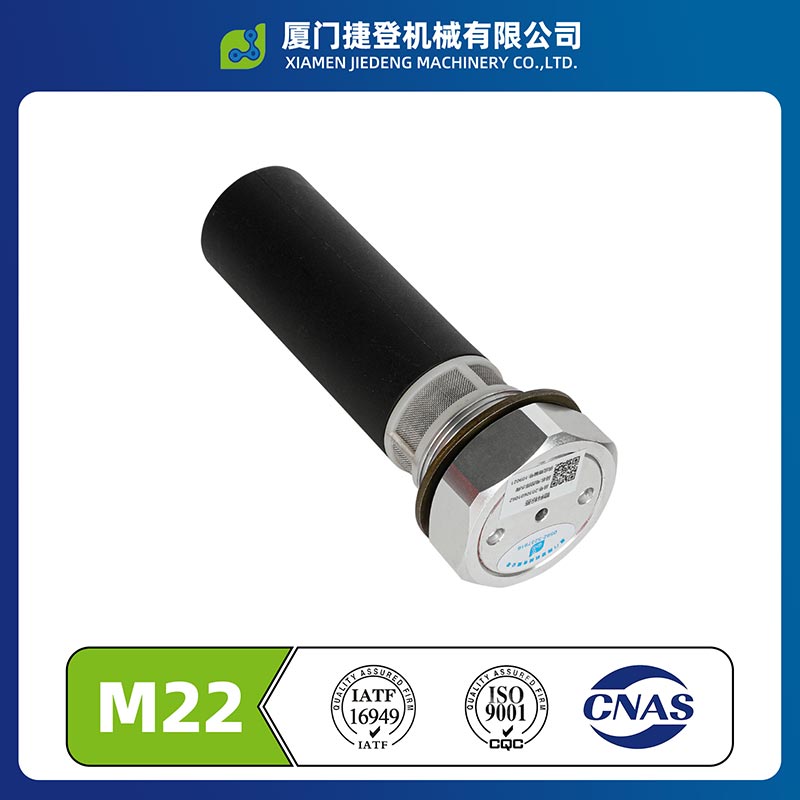

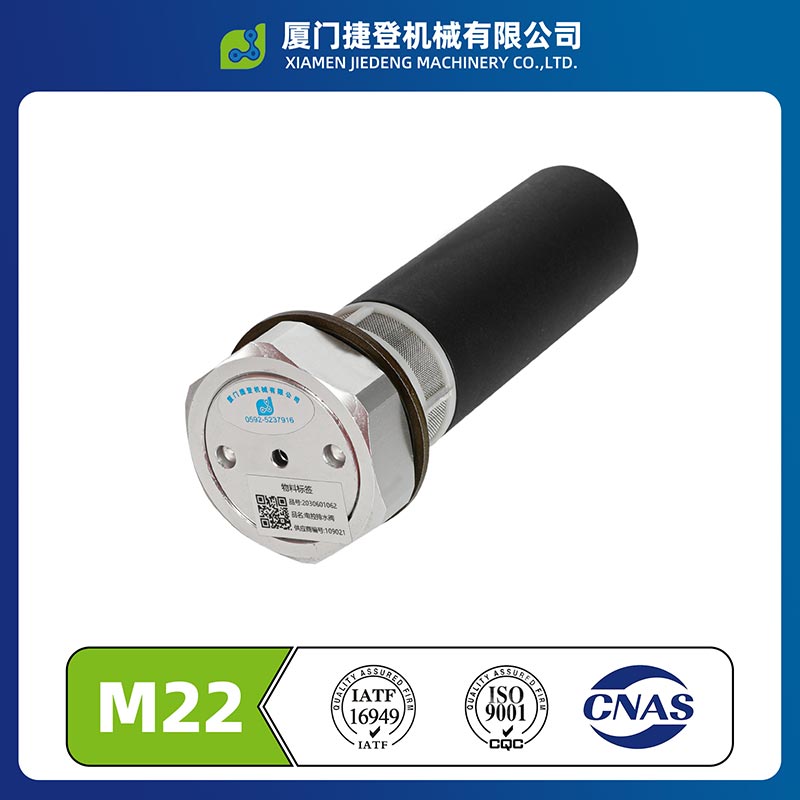

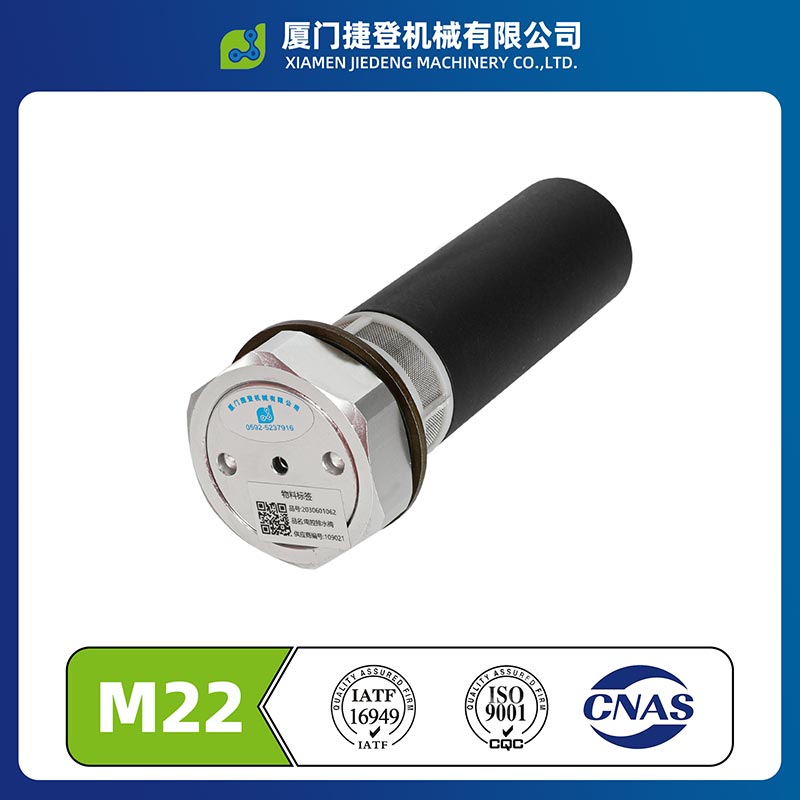

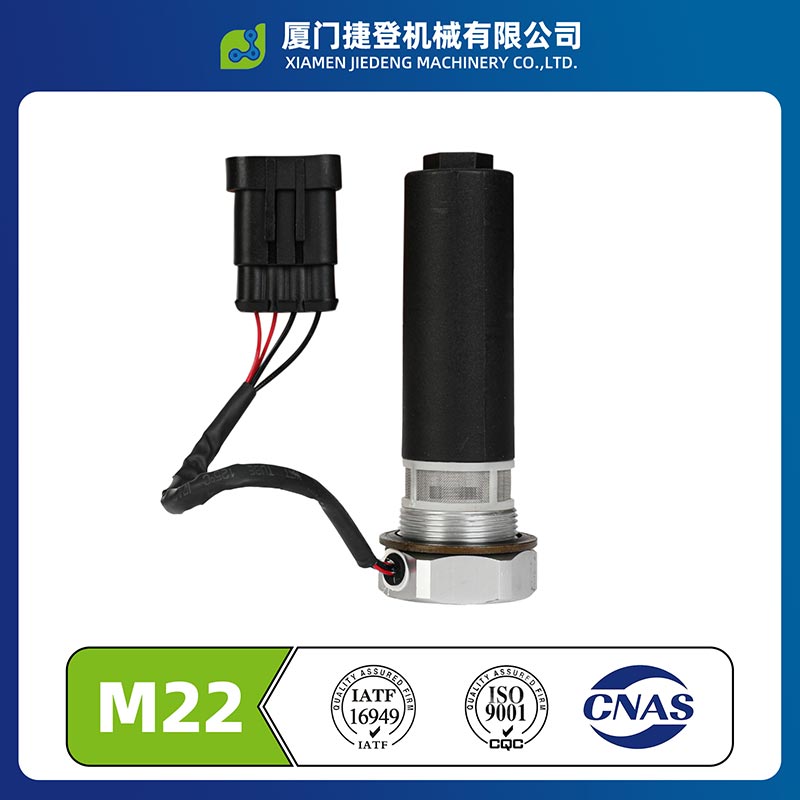

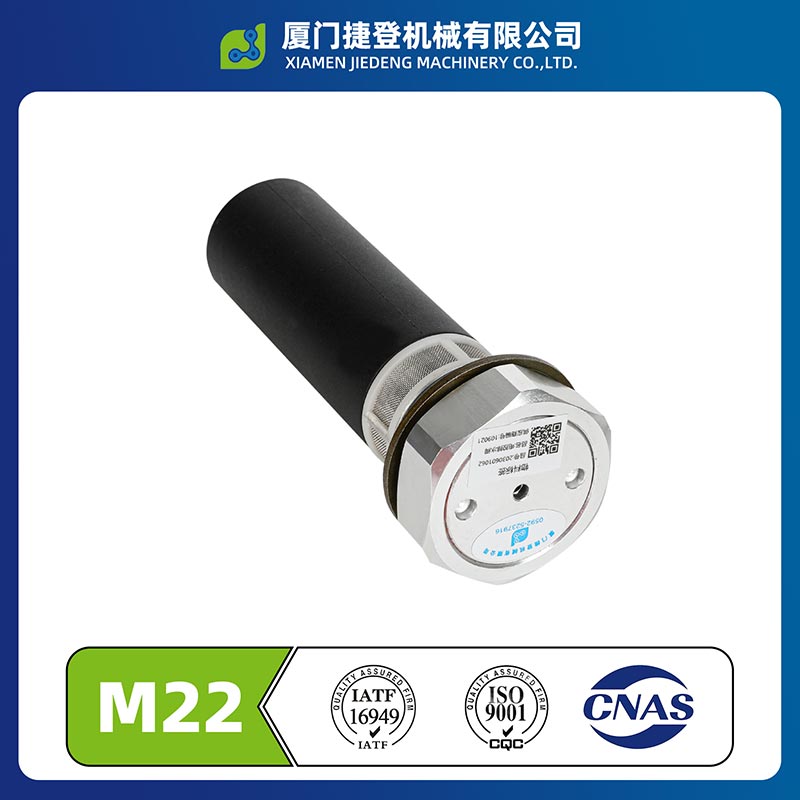

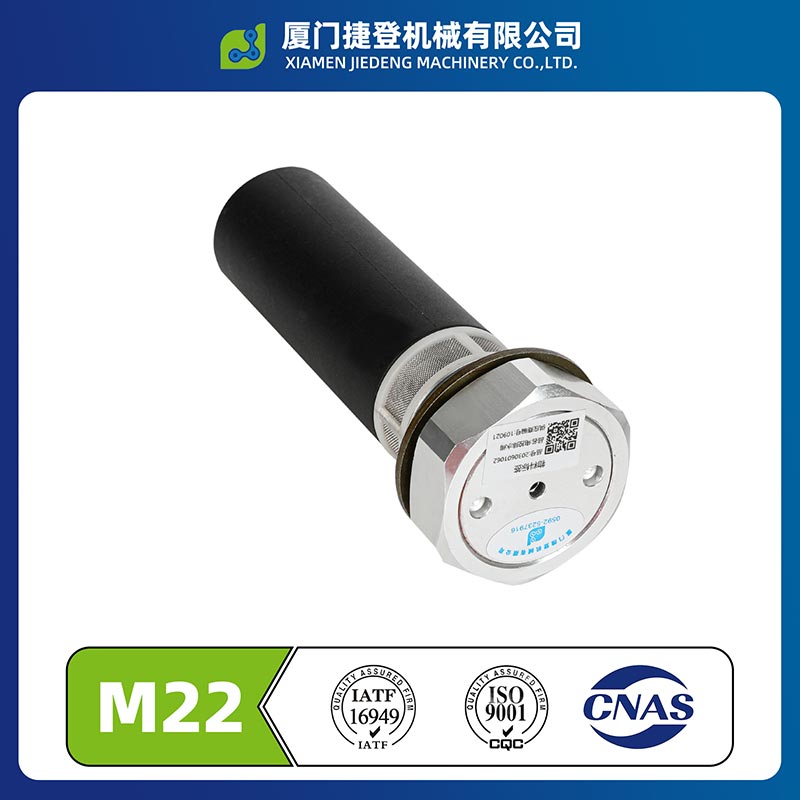

The Air Tank Electric Drain Valve and intelligent drainage system technology for air tanks produced by Jideng Factory can achieve timed drainage through ECU. They can also open and close the heating function according to temperature changes, ensuring ice-breaking and drainage in winter, and keeping the gas storage tank dry. It is both intelligent and efficient.
| Item | Technical Specification |

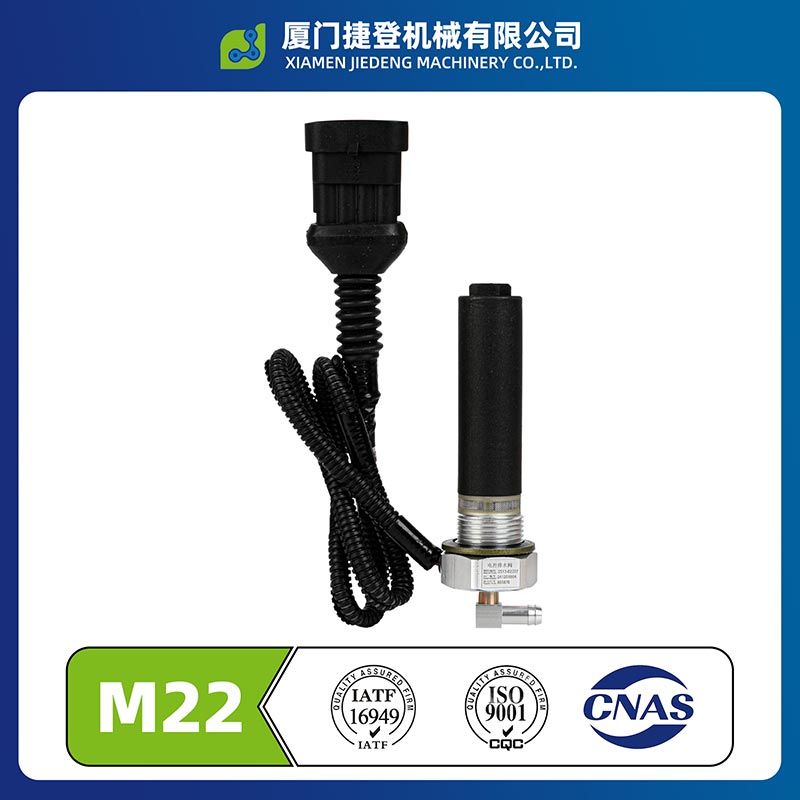

| JD Code | JD-DDPS-002 Heatable |
| Rated Pressure Range | 0~1.2MPa |
| Operating Temperature | -40°C~+80°C |
| Powter/Current | 9.6W/0.4A |
| Drain Aperture | Φ2±0.1mm |
| Heating Power/Operation Current | 6.4W/0.27A |
| Protection Level | IP67 |
| Operation Voltage | DC24V±15% |
| Connector | AMP282106-1 |
| Mounted Thread | M22*1.5-6h |
| Heat function | constant temperature 80℃ |
This electric automatic drain valve is an innovative product with patented technology, specifically designed to effectively remove the condensate water and impurities accumulated inside the air tank of the car's pneumatic braking system. As an efficient alternative to traditional manual drain valves and differential pressure drain valves, it eliminates the need for manual operation and avoids the inefficiency and unreliability of traditional drainage methods.
This air tank auto valve boasts multiple significant advantages such as excellent performance stability, convenient electric control operation, rapid and thorough drainage, reasonable structural design, compact layout, strong durability, and long service life. It effectively enhances the reliability and safety of the pneumatic braking system, reduces maintenance workload, and provides an optimized and reliable automatic drainage solution for commercial vehicles with pneumatic braking systems, buses, trailers, and other equipment.
| Regular Intelligent Drainage System | Electric Automatic Drain Valve |
|
|
|
1. High cost,price of a set of intelligent drainage systemsis about 500~600 USD. 2. The installation space at the bottom is limited, and reasonable layout is required for complex operation. 3. There are many parts, the installation is more complicated, and the probability of failure is higher. |

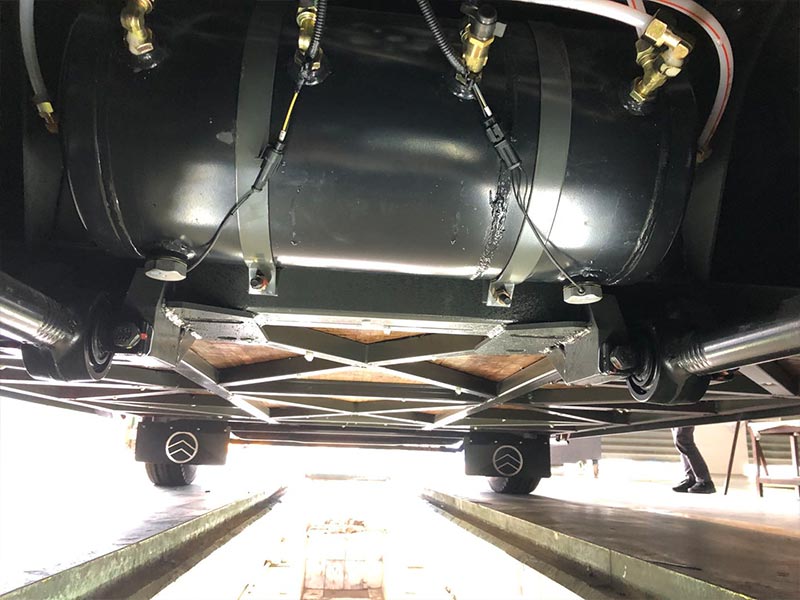

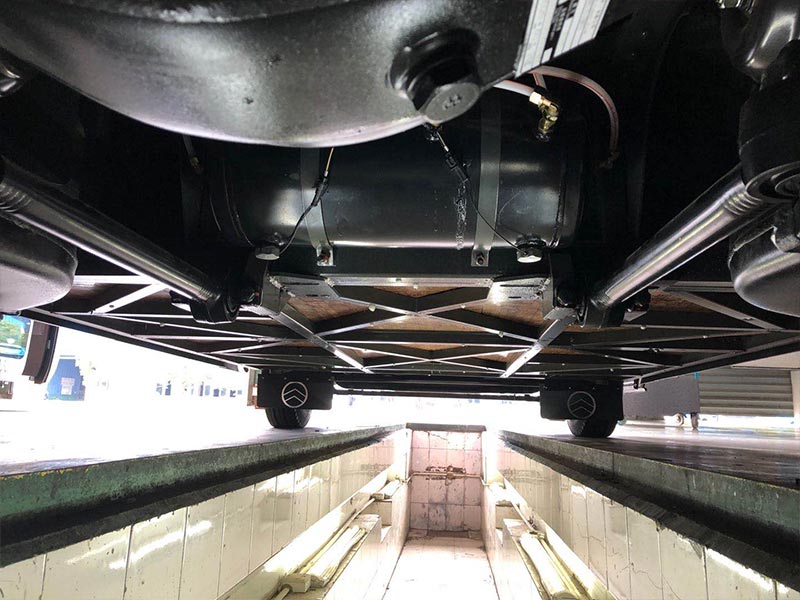

1. Installed at the bottom of the air storage cylinder, normally in a closed state, controlled directly by the rocker switch, easy to use. 2. After installation, only a nut thickness of 10mm is exposed. 3. Use ECU to achieve timing drainage, open and close heating according to temperature change to ensure that the ice can be broken in winter, and keep the air storage cylinder dry, which is intelligent and efficient. |
A: Just a few minutes
A: Yes, it can be.
A: Yes, it can be.
A: Yes, we always attend large-scale bus exhibitions abroad.
A: More than ten years.
