Transit Bus Air Tank Drain Valve

XIAMEN JIEDENG is a trusted global Drain Valve Exporter offering the premium Transit Bus Air Tank Drain Valve (Model: JD-DDPS-003) designed specifically for commercial vehicle pneumatic braking systems. Operating on a DC24V power supply with IP68-rated protection, this non-heated automatic drain valve works in tandem with an intelligent drainage controller and switch to deliver precise, automated moisture discharge without manual intervention.

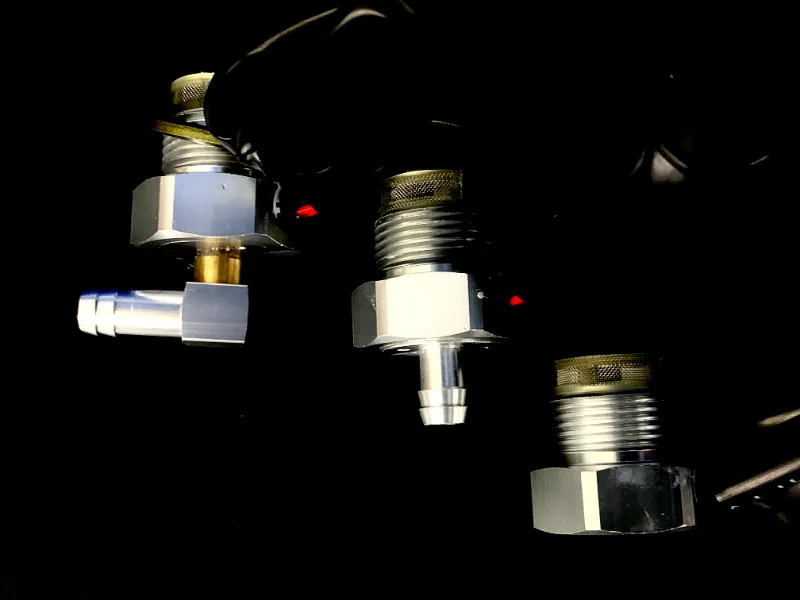

Beyond municipal transit, this reliable setup is widely installed as a City Bus Air Tank Drain Valve to support frequent stop-and-go operations without air pressure loss. Available in three versatile configurations—Standard (JD-DDPS-003), Fixed Outlet (JD-DDPS-003-W), and 360° Rotatable Outlet (JD-DDPS-003-WW), it provides manufacturers and fleet operators with maximum installation flexibility for streamlined chassis layout and long-term operating efficiency.

Patented Smart Drainage Advantage

In commercial transport operations, compressed air systems inherently generate water condensate, oil residues, and sludge. Relying on traditional manual drain valves creates severe operational bottlenecks and safety hazards for fleet managers:

· Human Error & Inconsistent Maintenance: Manual drainage relies entirely on driver or technician discipline. Bus drivers often forget or skip manual draining during demanding shift schedules, allowing water to accumulate continuously at the reservoir bottom.

· Severe Corrosion & Brake Failure Risks: Untreated water and acidic oil sludge erode inner air tanks, valves, and rubber seals. Over time, moisture leaks into brake lines, causing delayed brake response, soft brake pedals, uneven braking force, or catastrophic brake failure during emergency stops.

· High Maintenance & Downtime Costs: Corrosion leads to premature failure of air dryers, brake chambers, and ABS control modules, resulting in frequent vehicle downtime, elevated spare part costs, and unnecessary labor expenses.

· 100% Hands-Free Automated Operation: By integrating electronic sensor technology with smart controller logic, the JD-DDPS-003 system automatically executes scheduled, precise moisture discharge without requiring any manual effort from drivers or service staff.

· Eliminates Air Pressure Loss: Patented micro-pulse valve timing ensures that condensate and oil sludge are thoroughly evacuated in real time without causing unnecessary air pressure drops, preserving full braking power.

· Proprietary Patented Technology: Protected by exclusive utility patents, our valve design incorporates advanced anti-clogging internal channels and dynamic sealing geometry, offering unprecedented durability and resistance against dirt, oil, and road vibration.

Product Overview & Advantages

Non-Heated Efficiency for Normal Temperatures

Unlike heated models intended for sub-zero climates, the JD-DDPS-003 series is optimized for normal-temperature operational environments. By eliminating unnecessary heating elements, it provides fleet operators with an energy-efficient, highly cost-effective moisture management solution that drastically reduces maintenance requirements without compromising performance. For sub-zero winter climates, please refer to our heated series (such as JD-DDPS-004).

Flexible Chassis Integration (003 / 003-W / 003-WW)

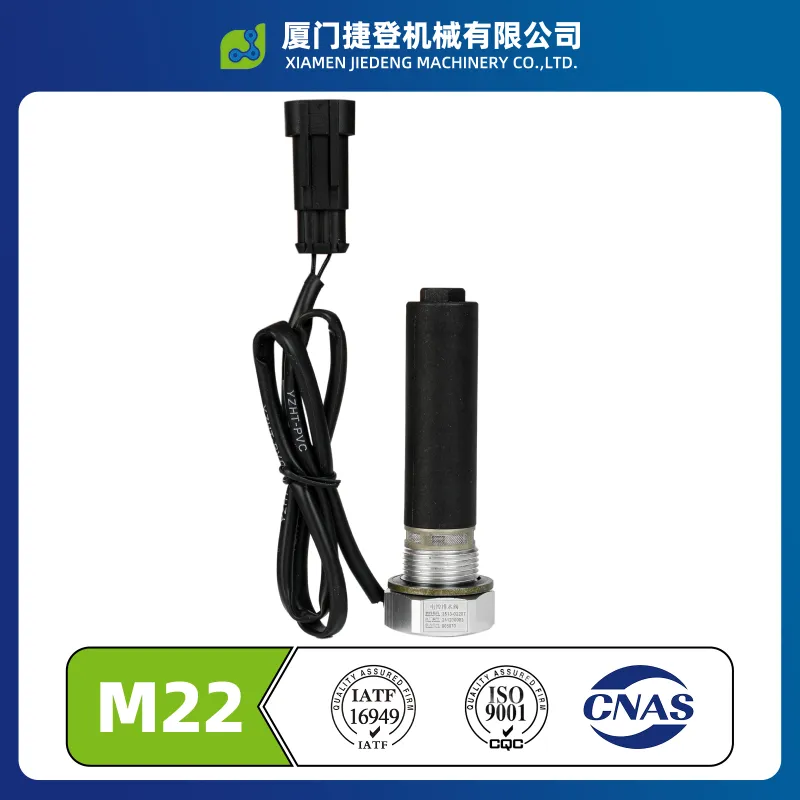

· JD-DDPS-003 (Standard): Sleek design without an external drainage outlet, perfect for compact, direct-mount configurations.

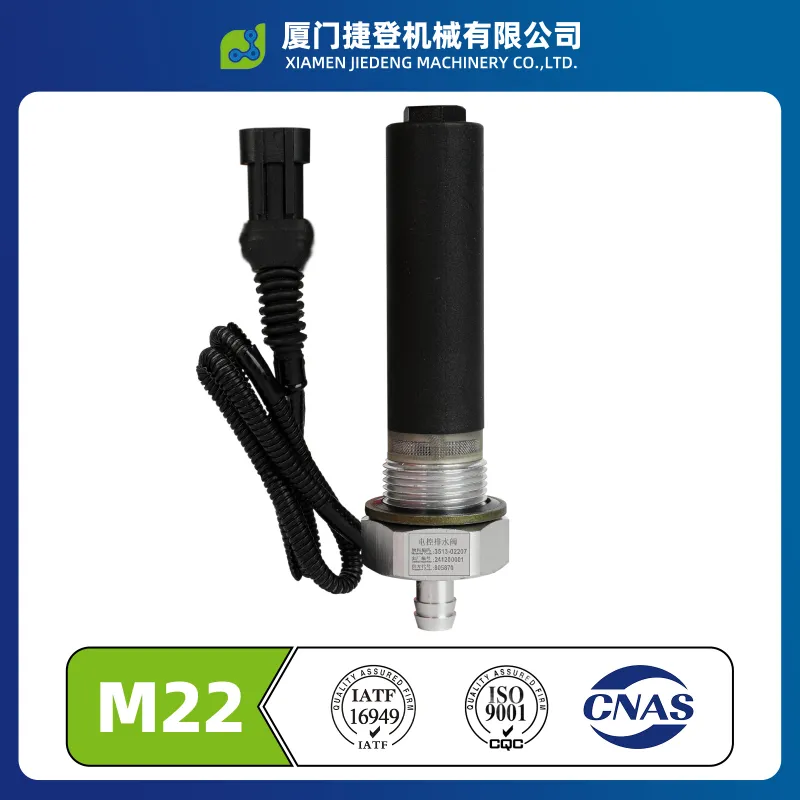

· JD-DDPS-003-W (Fixed Port): Features a fixed φ9 drainage port for directional condensate discharge.

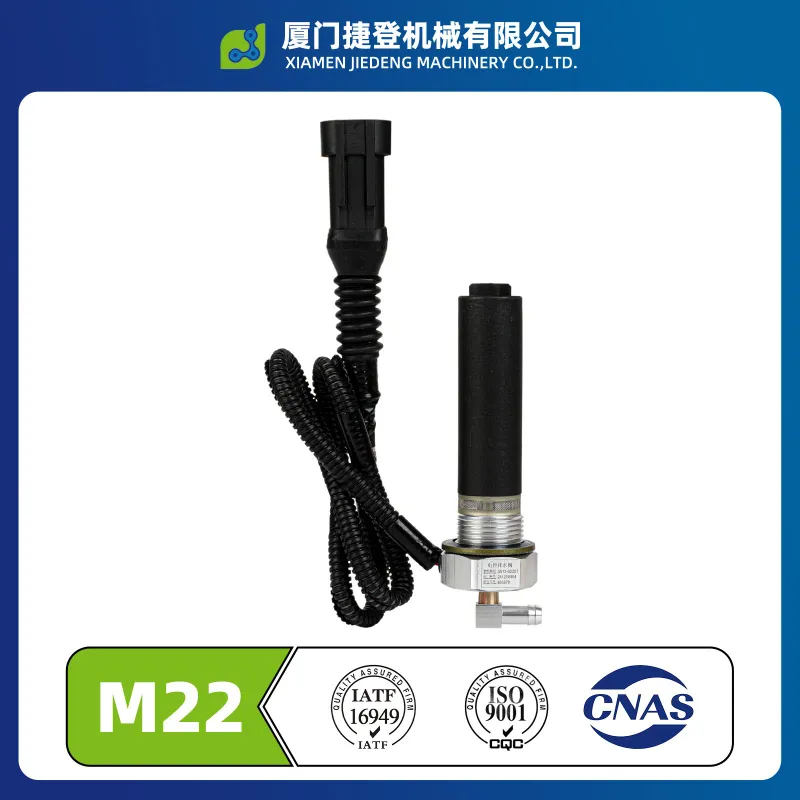

· JD-DDPS-003-WW (360° Swivel Port): Equipped with a φ9 360-degree rotatable drainage outlet. This rotatable port allows engineers to adjust hose routing in any direction, making chassis piping significantly more flexible and hassle-free.

Technical Specifications

Equipped with robust specs, it functions as a highly durable Long Distance Bus Air Tank Drain Valve, maintaining continuous pneumatic line purity over high-speed highway routes.

Model Variant Analysis & Configuration Legend

· JD-DDPS-003: Ideal for standard setups where direct bottom drainage is unhindered.

· JD-DDPS-003-W: Ideal for routing water away via hose along a predetermined fixed angle.

· JD-DDPS-003-WW: Best choice for tight chassis spaces where custom hose angles prevent line kinking and simplifies OEM assembly.

Geographic & Climate Suitability

Since this series does not include an active heating element, it is specifically targeted at markets and regions without sub-zero freezing risks:

It is also suitable for heavy commercial machinery such as wheel loaders, mining haul trucks, and semi-trailer tractor units operating in these climates. Related components include brake system components and intelligent drain valve controllers.

Why Partner with XIAMEN JIEDENG

· OEM/ODM Customization & Support: We provide one-on-one technical alignment, offering custom modification options and non-standard thread/connector adaptations for specialized vehicle configurations.

· Strict Quality Assurance: Manufactured under rigorous automotive quality management standards, each valve features IP68 ingress protection and a robust AMP282104-1 connector to withstand harsh road vibration, dust, and wash downs.

· Global Supply Chain Excellence: As an established export leader, XIAMEN JIEDENG guarantees rapid lead times, comprehensive technical documentation, and full after-sales support for global fleet managers and OEM assemblers.

Frequently Asked Questions

Q1: Does the JD-DDPS-003 valve function independently or require a controller?

Answer: It should be used in combination with an intelligent drainage controller and a drainage switch to achieve automated, timed water discharge.

Q2: Is this model suitable for regional commuter coaches?

Answer: Yes, it is heavily specified as an Intercity Bus Air Tank Drain Valve due to its ability to prevent water buildup across varying daily temperature cycles without draining power reserves.

Q3: What is the main advantage of the JD-DDPS-003-WW model over the standard 003?

Answer: The 003-WW features a 360° rotatable drainage port (φ9). This rotatable fitting gives technicians and OEMs complete freedom to direct the drain tube in any direction, preventing hose kinks and simplifying chassis line routing in tight spaces.

Q4: Can this non-heated valve be used in extremely cold regions?

Answer: The operating temperature range is -40°C to +120°C. However, because it lacks an integrated heating element, it is recommended for normal-temperature environments or regions without freezing risks. For sub-zero winter climates, we recommend our heated series (such as JD-DDPS-004).
