Xiamen Jiedeng Machinery possesses over 10 years of specialized experience and offers a diverse range of brake system components, each designed with distinct functionalities. Furthermore, we provide comprehensive, one-stop solutions tailored to your specific requirements. We offer factory-direct pricing and comprehensive service support.
All the components that make up the entire braking system used for deceleration, stopping and parking of a vehicle are called brake system components, which can be classified into the following three categories:
(1) Brake pedal, brake master cylinder, brake fluid reservoir
(2) Brake hose, vacuum booster
(3) Brake slave cylinder, brake pads, brake discs
(4) ABS wheel speed sensor, ABS pump module
(1) Handbrake lever, handbrake cable
(2) Electronic handbrake motor, parking brake caliper
(1) Exhaust Brake Valve, Braking Regulator
(2) Brake Air Reservoir, Drier, Pressure Regulator
|
Picture |
Model Specification |
|
|
JD Code: JK99-401201-50 Max. working pressure: 1.0 MPa Operating temperature range: -30℃ to 80℃ Steering angle: 35° to 50° Installation Dim.: M22*1.5 Female, NPT3/8 Female |
|
|

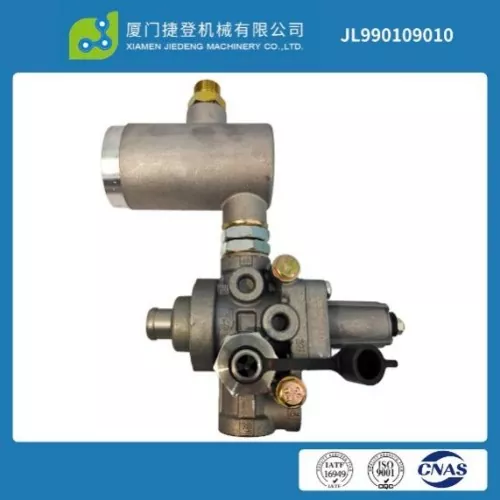

JD Code: JL990109010 Working pressure: 0.784 MPa Opening pressure: 0.8 ± 0.02 MPa Operating temperature: -40℃ to 100℃ |
|
|
JD Code: JD-DTDXF-F2 Installation Dim: 2-M22×1.5 Size: AF=32mm, L=72mm Material: Aluminum alloy and stainless steel |
|
|
JD Code: JD-STDXF-F1 Installation Dim: 3-M22×1.5 Size: AF=32.5mm, L75.5mm Material: Aluminum alloy and stainless steel |
|
|
Nominal value: R0=16.48KΩ±3% R25=5.00KΩ±1% material constant: B25/50=3950K IR⩾10MΩ temperature response: t⩽15S（25℃ in the water →0℃ in the alcohol） Working temperature: −40 to 85℃ |

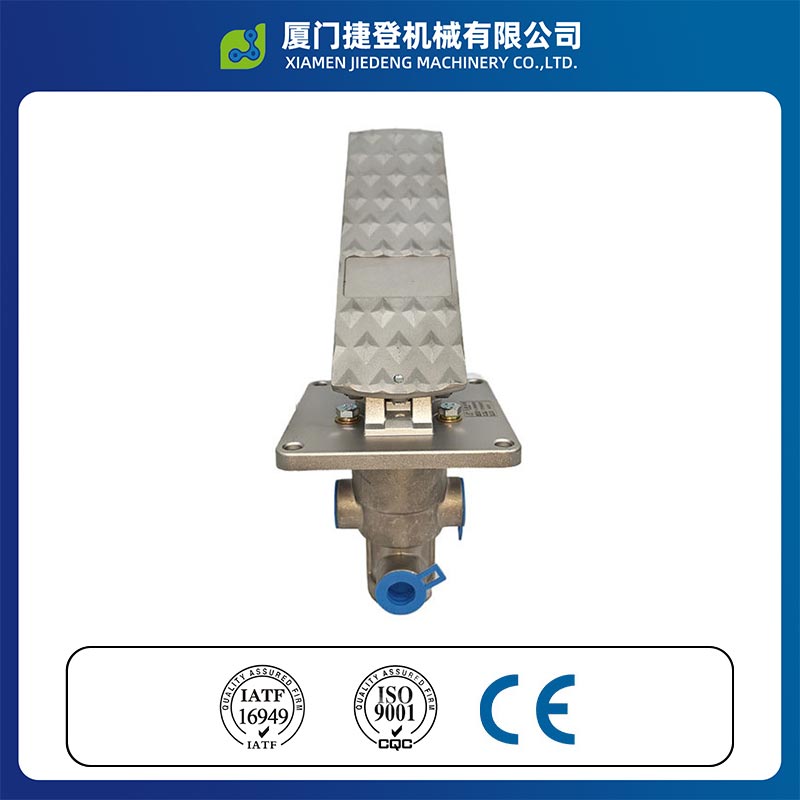

When you step on the pedal, the air passage is activated, delivering compressed air to the wheels to achieve deceleration and braking; when you release the pedal, the air is quickly released, and the brakes are immediately deactivated.
The deeper you step and the higher the air pressure, the stronger the braking force will be. Lightly press and slow down the braking, and firmly press for a quick stop. The braking will be smooth without any jolts or abruptness.
It is equipped with two independent air circuits. In case of leakage or malfunction in one circuit, the other circuit can still perform braking functions normally, preventing direct failure and significantly enhancing driving safety.
Suitable for loaders, light to heavy trucks, buses, and engineering vehicles. Supports stable braking under heavy loads, climbing slopes, and complex road conditions on construction sites.

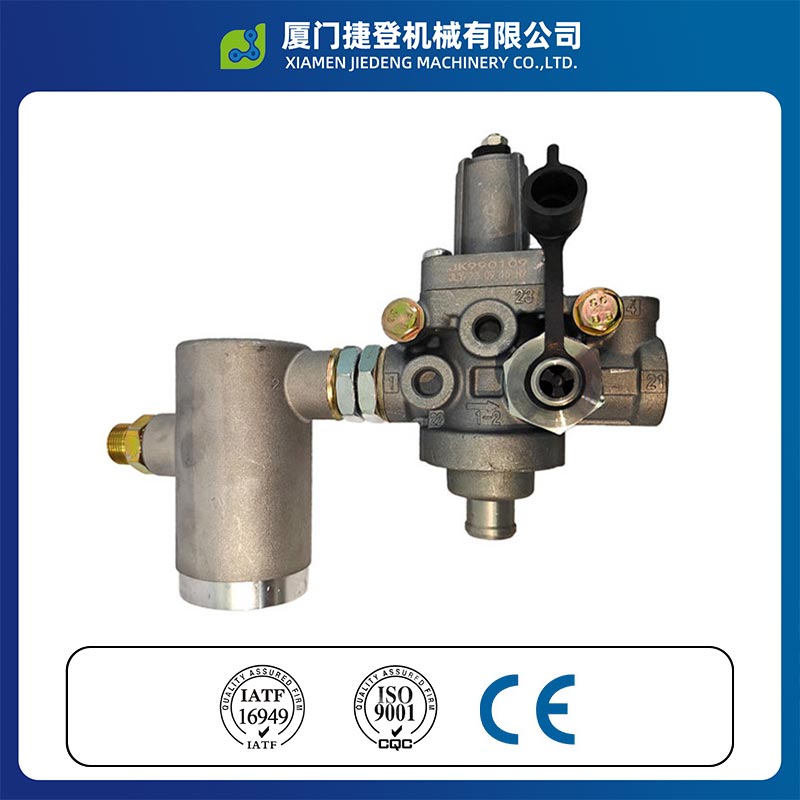

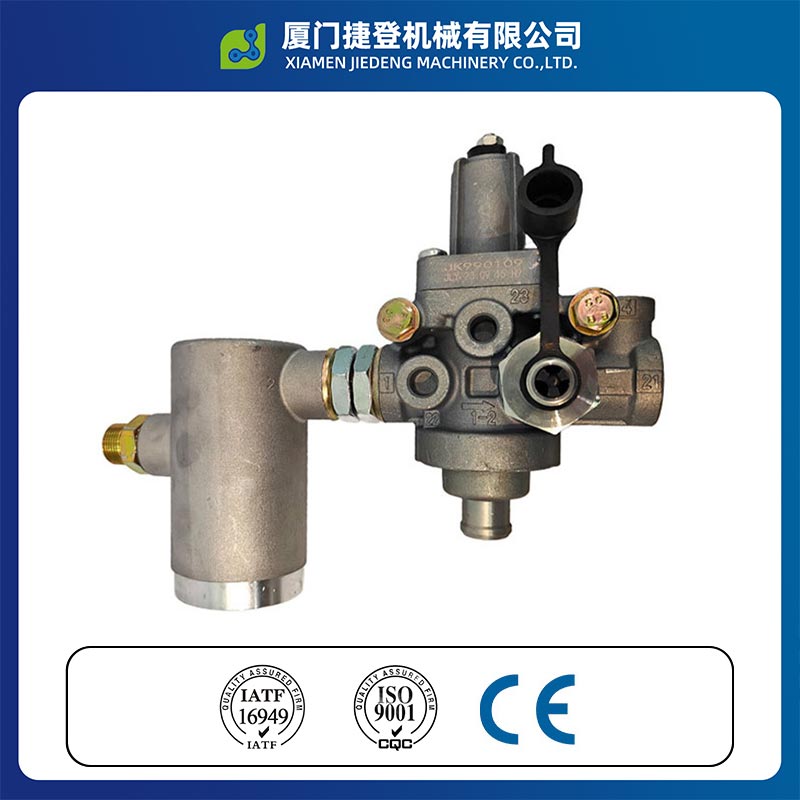

Maintain the air pressure at 0.784 MPa. When it reaches 0.8 MPa, it will automatically unload and shut down to prevent the pipeline from bursting due to excessive pressure and to avoid the vehicle from stalling due to insufficient pressure. The entire process is automatically pressure-stabilized.
The air produced by the air compressor is contaminated with oil, water and dust. However, it is all filtered out and it can also automatically drain water and oil to prevent the pipelines from rusting, freezing and causing valve components to get stuck.
It is equipped with a built-in heat dissipation structure, which cools the compressed air and protects the rear brake valve, air reservoir, and foot brake valve from being damaged by high temperatures.
When the air pressure exceeds the limit, it will automatically release the pressure, providing safety protection and preventing the air path components from being damaged due to overloading.
No additional air pump is required. You can directly inflate the tires of loaders and construction vehicles at any time, which is convenient for on-site use at the construction site.
The air compressor pumps air into the storage cylinder. After the air is pumped in, it must not be allowed to blow back into the air compressor to prevent the loss of air pressure throughout the vehicle and the softening of the brakes.
Multiple air storage tanks and multiple braking air circuits are connected together. If one air circuit leaks, it will not affect the others, and the entire vehicle will not experience a sudden drop in pressure, ensuring the safety of the brakes.
Used on the air path of the brake valve and the air pressure source manager, it prevents the pressure from dropping, ensuring that the brakes do not become weak, leak, or lose pressure, and providing a stable braking effect.
Aluminum alloy valve body, capable of handling both air pressure and oil circuits. It can be used in engineering vehicles, loaders, and heavy trucks' braking systems.

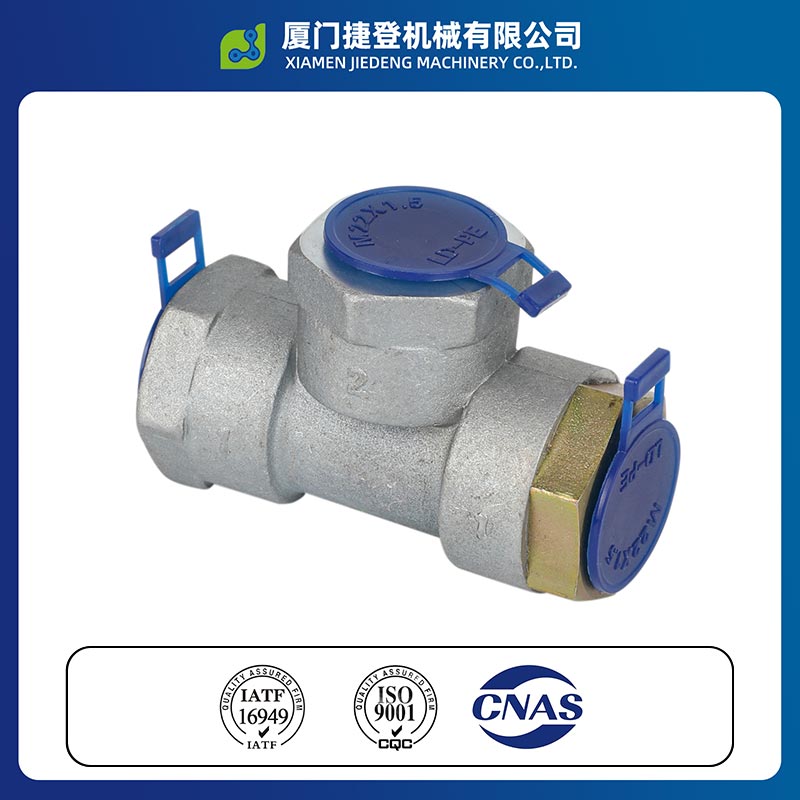

The two air intakes are respectively connected to two independent braking air circuits / two air storage cylinders. Whichever side has air pressure and the higher pressure, it will automatically supply air from that side to the outlet to supply air to the braking system.
The two circuits are isolated from each other, so there will be no gas leakage or interference between them.
The gas can only flow in the braking direction and cannot reverse; maintain the pressure in the gas line to prevent pressure loss and ensure the brakes do not become weak.
One of the air lines is leaking, malfunctioning or has no air pressure. The other line, however, can supply air independently and will not cause the entire vehicle's braking system to fail suddenly. This design perfectly suits the dual-line braking safety system of commercial vehicles.

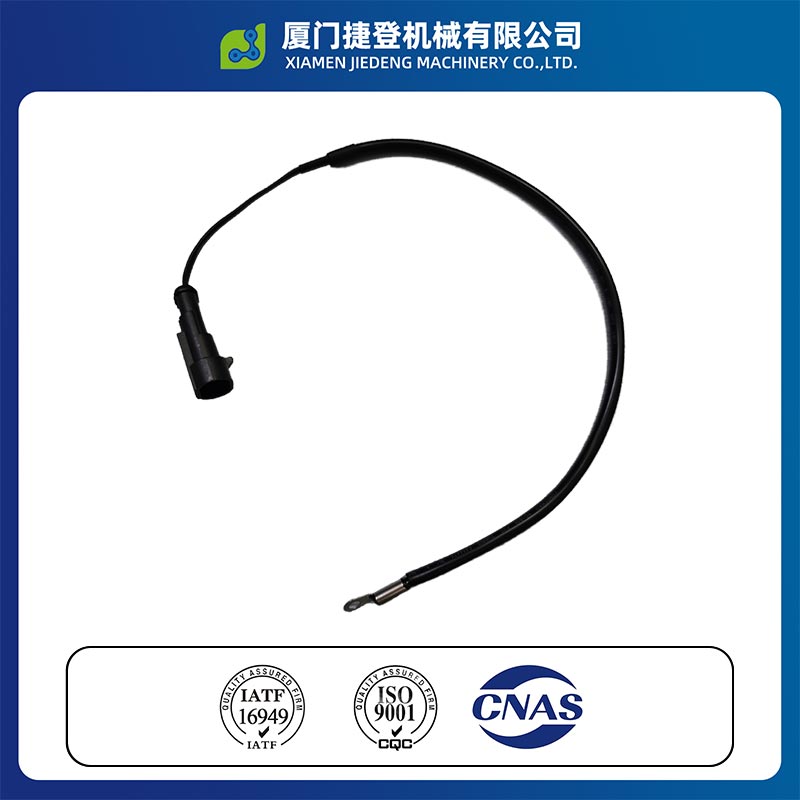

Installed at the exterior ventilation position, it precisely senses the actual ambient temperature and is not affected by the heat source in the cabin, making the temperature measurement more accurate.
It is equipped with a high-precision thermistor. As the temperature changes, it outputs the corresponding resistance signal, which is then reliably transmitted to the vehicle electronic control unit, dryer, and drainage valve controller.
Precisely provide the numerical values of the low-temperature environment, and offer temperature measurement reference data to the back-end control system, so that the system can determine whether it has entered the anti-freezing condition.
Operating range: -40℃ to +85℃. Resistant to vibration, able to withstand extreme temperatures and aging, suitable for use in trucks and engineering vehicles in various harsh environments throughout the year.
Xiamen Jiedeng Machinery specializes in manufacturing high-performance brake system components for air storage tanks. We employ robust design, strict quality control, and reliable performance to provide durable solutions for compressed air systems.
Our products ensure efficient condensate drainage, extend equipment lifespan, reduce maintenance efforts, and provide stable operation under various working conditions.
By choosing us, you will receive professional quality, timely delivery, and reliable after-sales support.
JIEDENG is ready to provide its high-quality Brake system components to customers worldwide.
