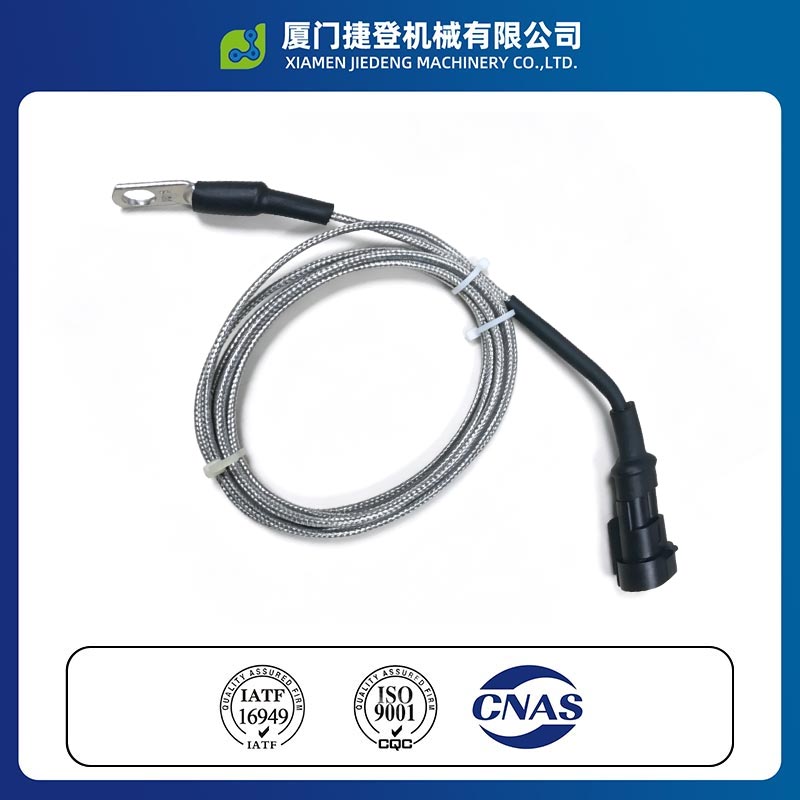

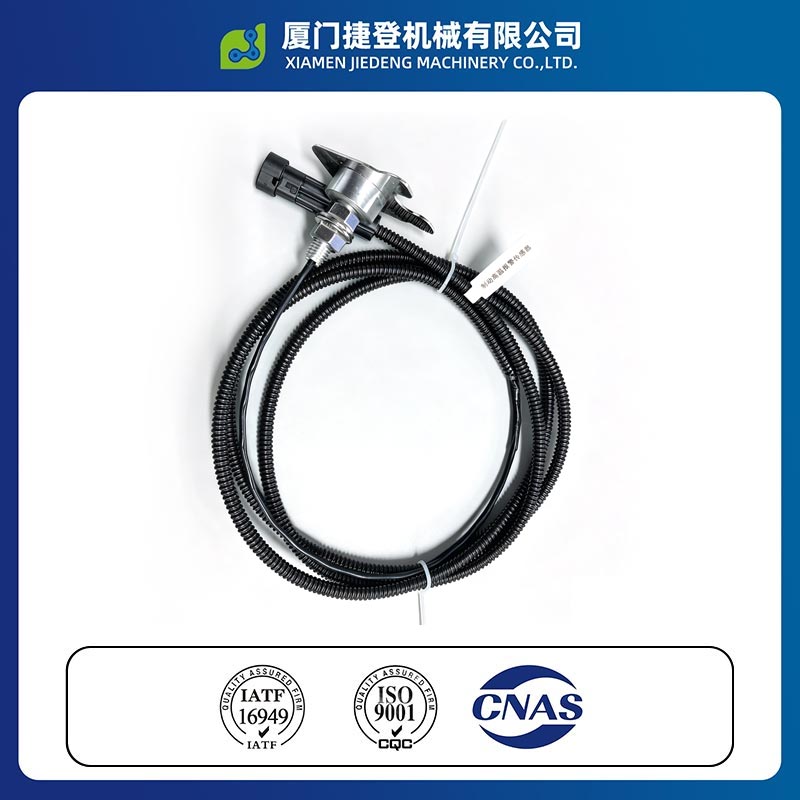

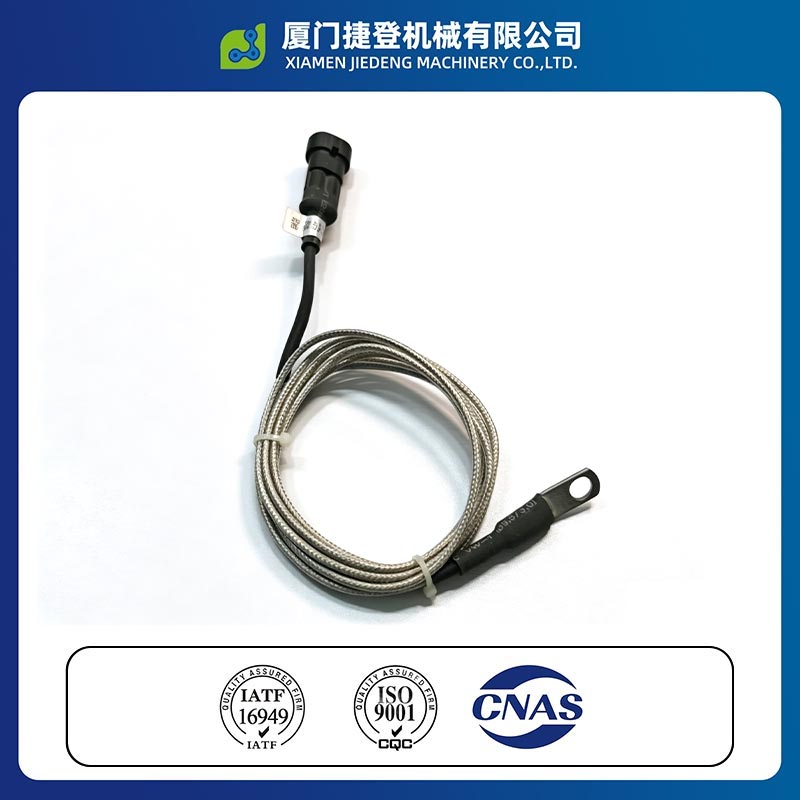

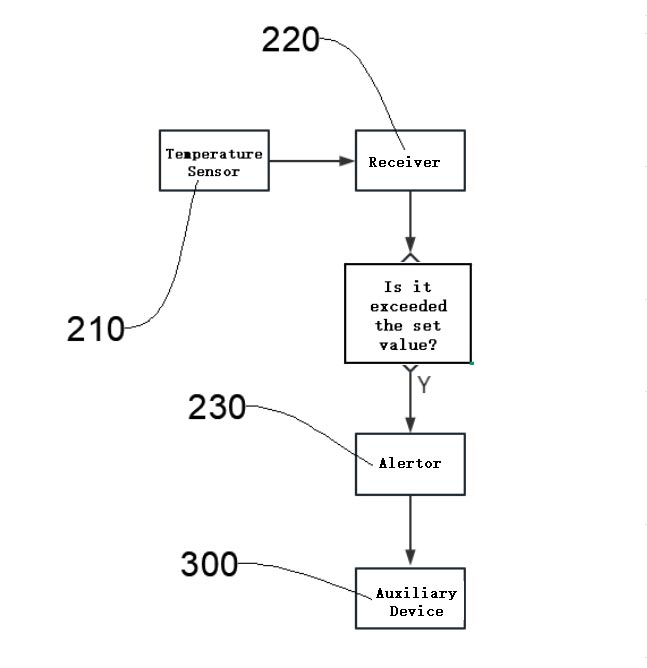

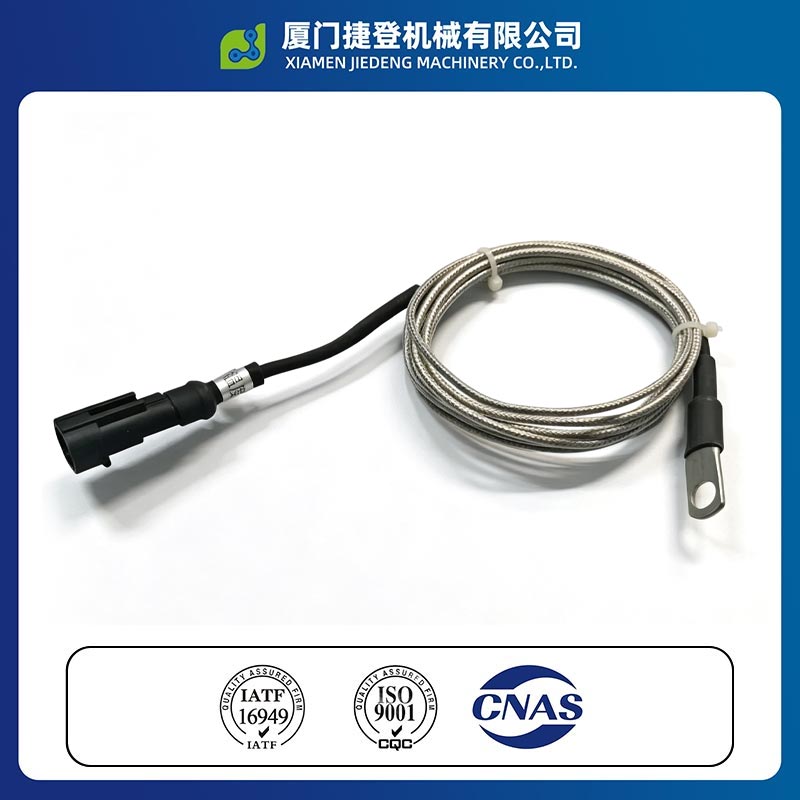

The brake caliper temperature sensor factory directly by Xiamen Jiedeng is a crucial sensing component of the brake caliper high-temperature warning system. It is specifically designed to collect the actual working temperature of the brake caliper. Abnormal high temperatures generated during vehicle drag braking, frequent braking, and continuous braking on long downhill sections can all be detected and captured in real time. The temperature signals are then reliably transmitted to the host controller, providing the vehicle with accurate and real temperature data for the high-temperature warning system. It is the fundamental core of the entire warning system.
1. Temperature sensor measurement range: -40℃ to 500℃, covering all working temperature zones of braking;
2. Industry standard: Each axle is equipped with 2 temperature sensors;
3. Configuration reference: 4 for dual-axle, 6 for triple-axle, and the system can support a maximum of 10 sensor connections;
4. Compatible with disc and drum brakes, suitable for various commercial vehicles such as refuse trucks, buses, and articulated vehicles.

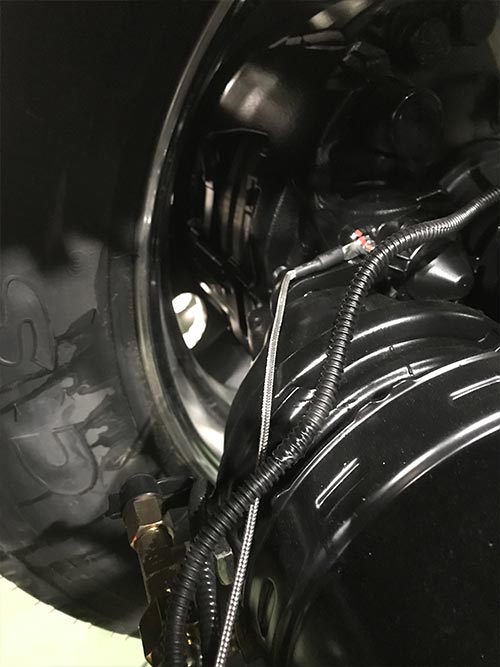

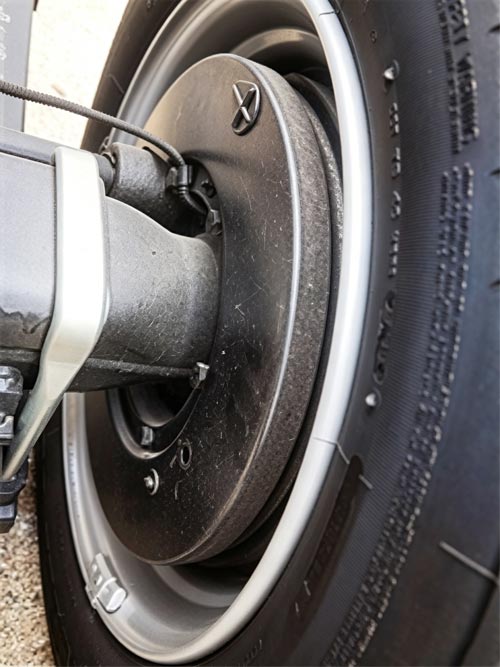

1. The temperature sensor can be installed by drilling holes in the dust cover of the brake caliper, fitting perfectly with the original vehicle structure, without requiring significant modifications.
2. The installation screws are made of stainless steel, effectively resisting road debris and not prone to rust.
3. The built-in wiring is neatly arranged, and can be bundled and laid out synchronously with the original vehicle brake wiring.
4. The overall installation is simple, and the later maintenance, disassembly and assembly are very convenient.
1. The instrument fault indicator lights up, and the system issues an active warning.
2. The braking system functions abnormally, resulting in a degraded driving experience.
3. The temperature data is abnormal, with values being disordered and distorted.
4. Hidden mechanical faults occur, and the risks accumulate continuously.
Step 1: Fault investigation, precise problem location
Step 2: Minor fault repair (no need to replace parts)
Step 3: Severe fault replacement (completely solve the core problem)
Step 4: Reset and verification, confirm fault elimination
To extend the service life of the sensors and avoid frequent failures, it is recommended to conduct checks in conjunction with vehicle maintenance: During regular maintenance at 20,000 kilometers, inspect the appearance of the brake caliper temperature sensor, the connection status of the wiring harness, and clean the accumulated dirt on the probe; for vehicles that frequently travel on mountain roads and congested sections, pay special attention to the sensor's resistance to high-temperature aging; when repairing the braking system, follow standard disassembly and assembly procedures to avoid damaging the sensors; prioritize the use of original factory-level high-stability sensors that are compatible with harsh conditions to improve the monitoring accuracy of the braking system and driving safety.
The temperature sensor is specially designed for the chassis environment of commercial vehicles. It can withstand both high and low temperatures, and resist vibration and shock. It can work stably even when driving on mountain roads, construction sites, or muddy sections. The signal transmission does not lose data, and the temperature does not drift. It complies with the national safety standards for vehicles. Whether it is used for batch pre-installation by the original equipment manufacturer or aftermarket modification in the market, it is suitable for long-term vehicle installation.
