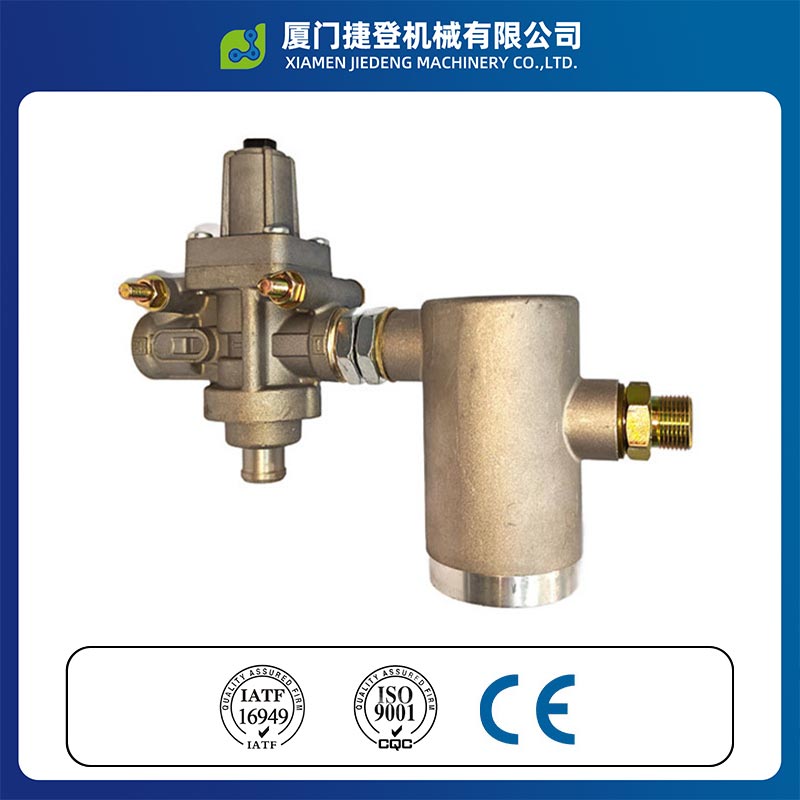

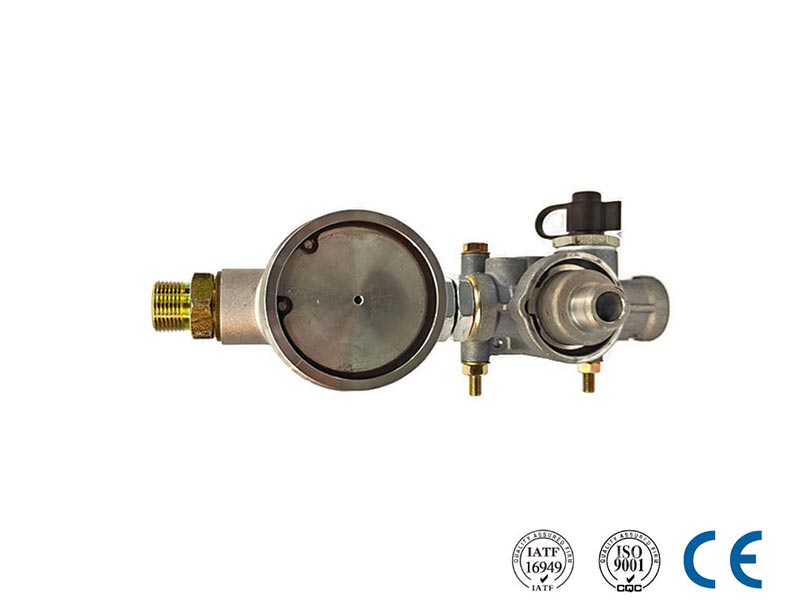

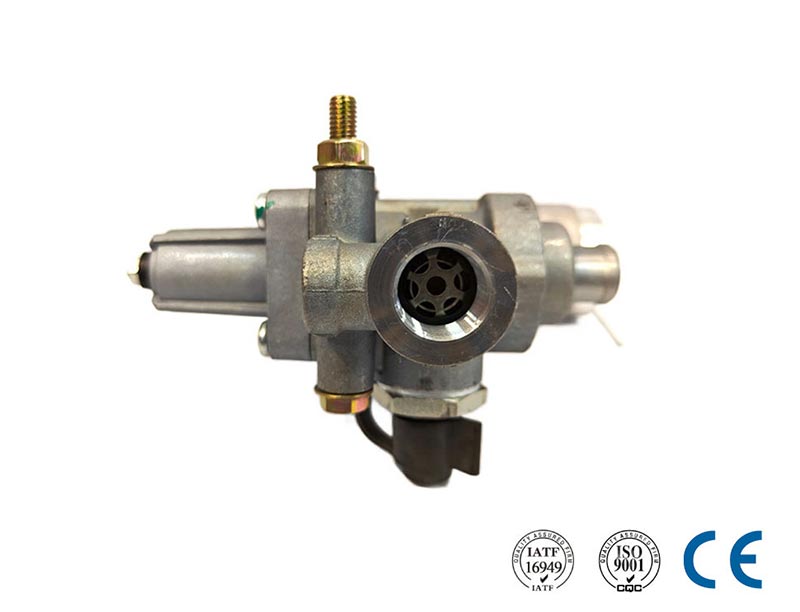

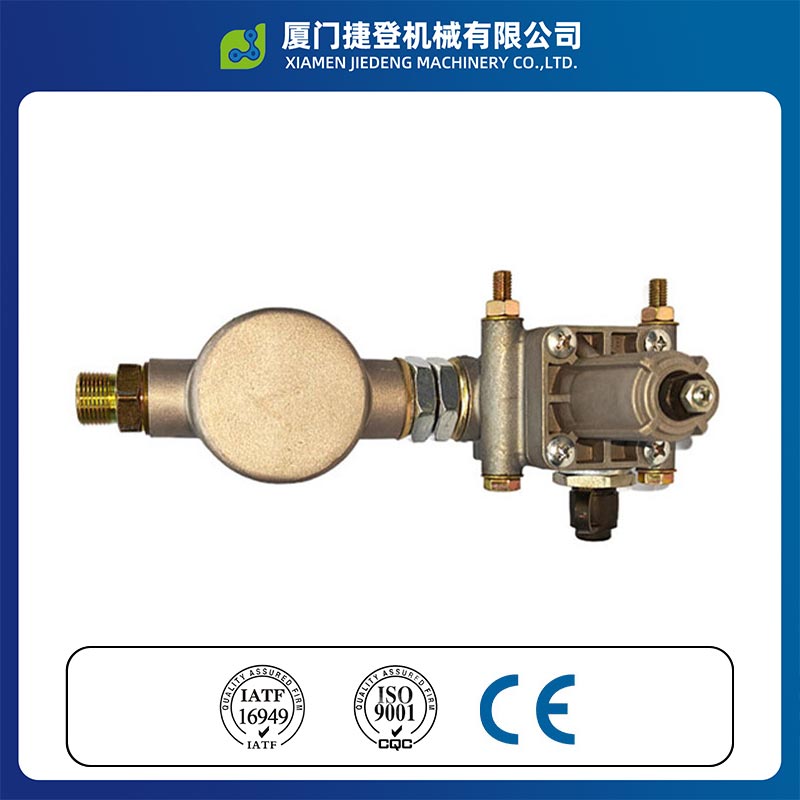

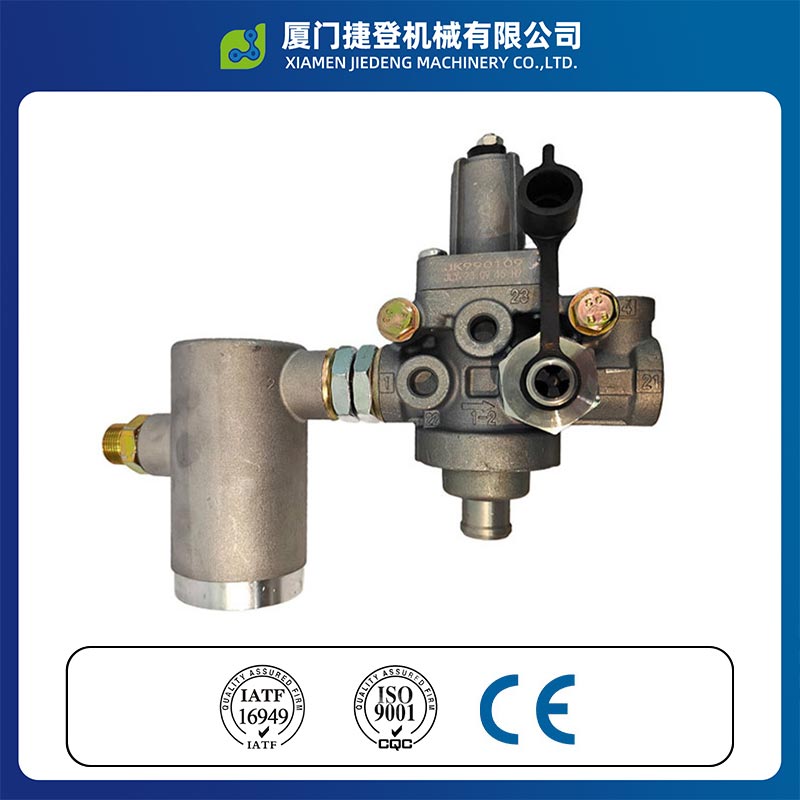

Intelligent Pressure Source Manager

As a manufacturer with many years of experience in manufacturing valve components for commercial vehicles, Xiamen Jiedeng Machinery has developed the Intelligent pressure source manager: #JL990109010.
This product has a working pressure of 0.784 MPa, an opening pressure of 0.8 ± 0.02 MPa, and can operate stably within the temperature range of -40℃ to +80℃.
As an Intelligent manager for the air tank pressure source, it can automatically adjust the pressure, remove impurities, remove oil and water, and is suitable for vehicles such as loaders. Its performance is mature and reliable, effectively ensuring the safe operation of the braking system.

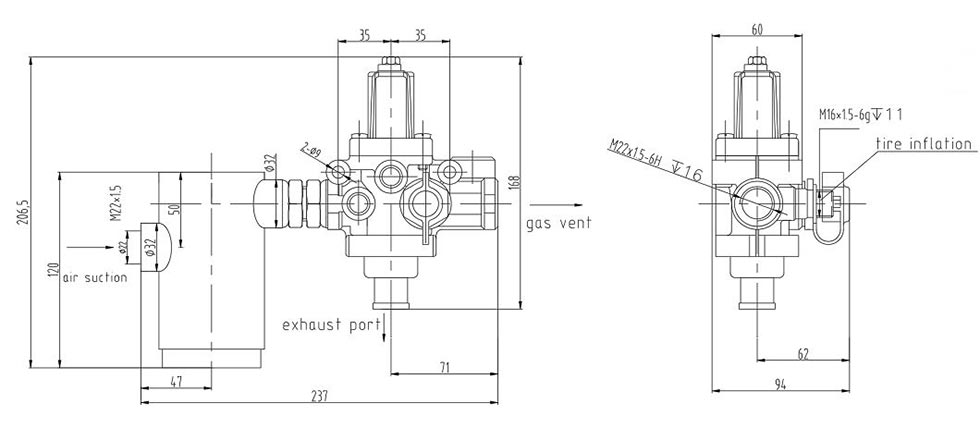

Product Parameter

Product Function

The Intelligent manager for air tank pressure source can automatically adjust the working pressure of the air braking pipeline and control the unloading operation. It can filter impurities, automatically remove oil and water, cool the system, and provide overload safety protection. It is equipped with a tire inflation connector, making it convenient to inflate tires at any time.

It is suitable for loaders and other vehicles. It can block harmful impurities, dissipate heat, and has an automatic oil-water separation structure, which can effectively extend the service life and durability.

This device integrates the unloading valve, intake air treatment component, exhaust gas filter, and exhaust gas filter. The intake port of the unloading valve is connected to the intake air treatment device; the outlet is connected to the exhaust gas filter, and the exhaust port is connected to the exhaust gas filter.

A radiator is installed above the intake air unit, which is built into the air filter and installed below the automatic drainage valve. The automatic drainage valve is installed at the upper intake end of the exhaust gas filter.

After more than ten years of application and continuous technical improvements, this product has mature performance, excellent filtration and cooling efficiency, economical design, and reliable operating characteristics.

Assembly Instructions

When installing the Pressure Source Intelligent Manager, please keep the condenser tube (upstream component) and the exhaust pipe (downstream component) clean during the assembly process.

Do not allow any impurities such as raw material belts and paper pads to enter, as this will seriously damage its functionality and performance.

When is an air pressure source manager needed?

It is necessary to use an air pressure source manager when the vehicle's air pipeline is frequently contaminated by oil and water, the pipeline is rusted or frozen, the air pressure is unstable, or the braking components are prematurely damaged.

As an important auxiliary device of the gas storage tank system components, it is particularly suitable for working environments such as loaders and engineering vehicles that are subject to long-term heavy loads, dust, and high temperatures.

It can automatically regulate pressure and release pressure, filter impurities, remove oil and water, provide heat dissipation and overload protection.

This can effectively extend the service life of air pipeline components and ensure the stable and reliable operation of the braking system.
