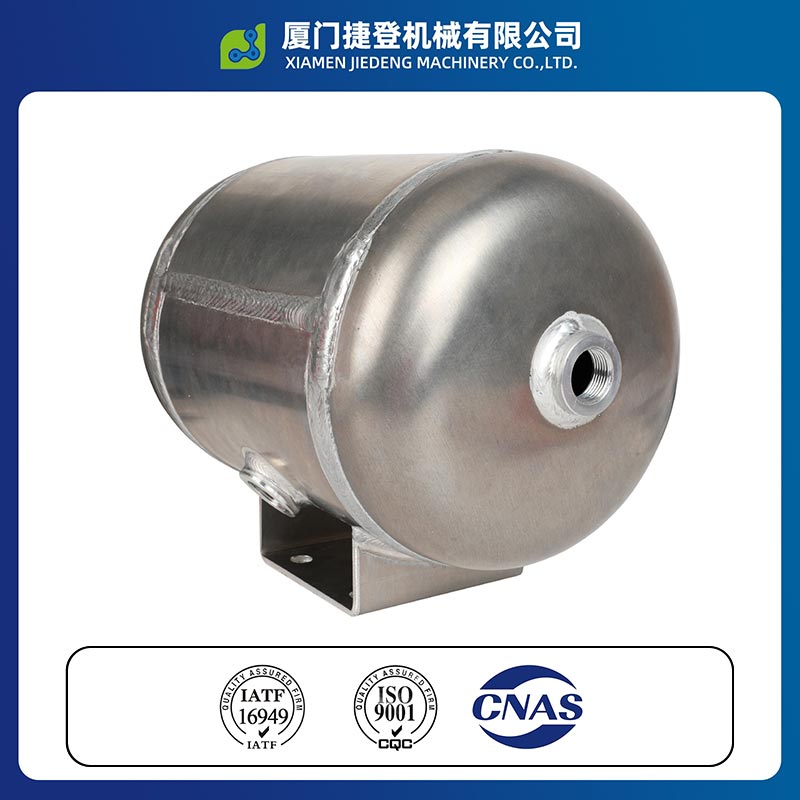

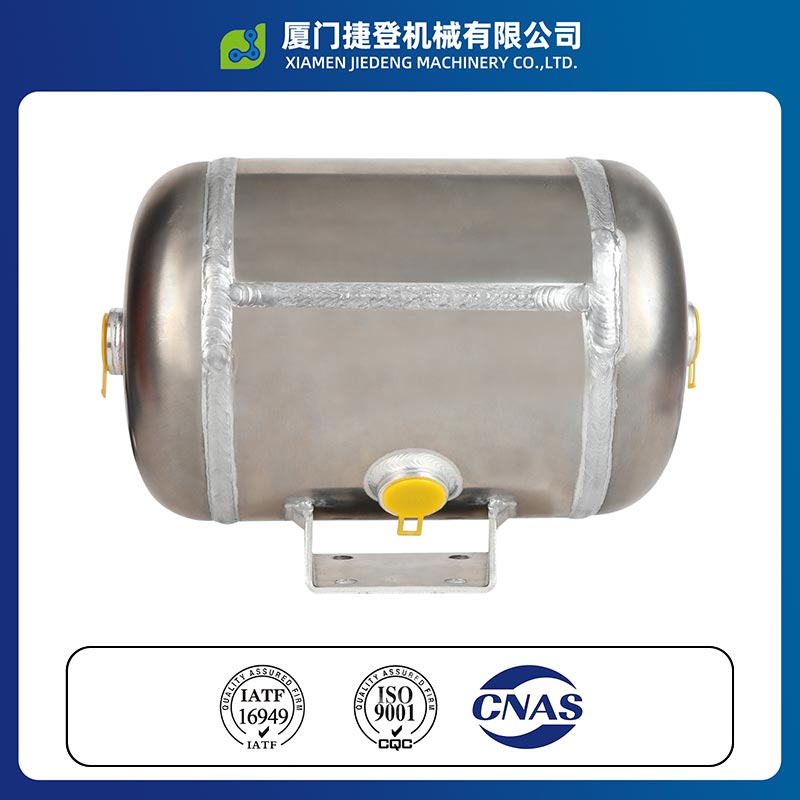

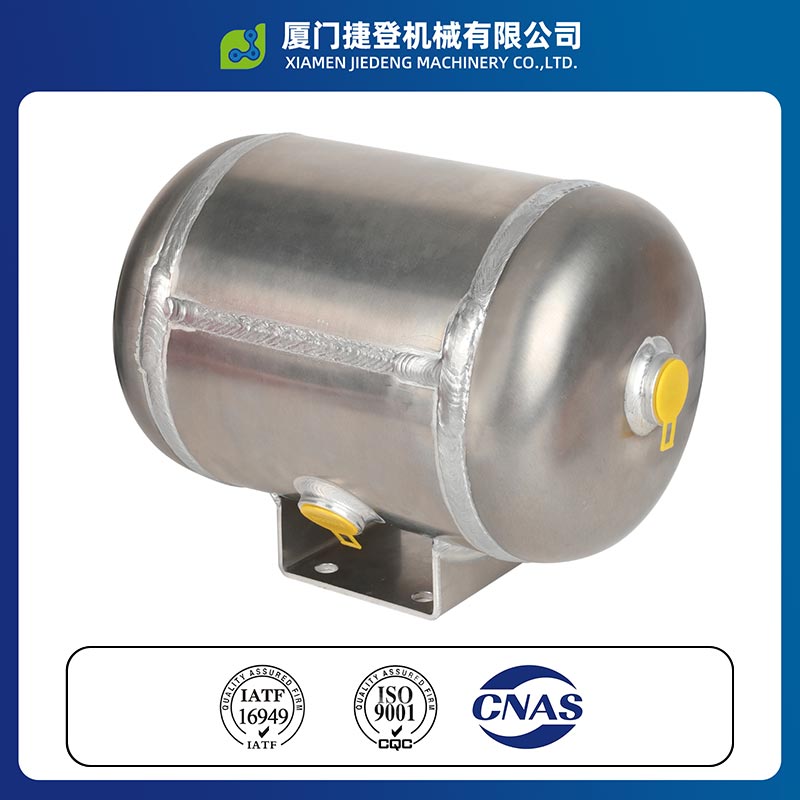

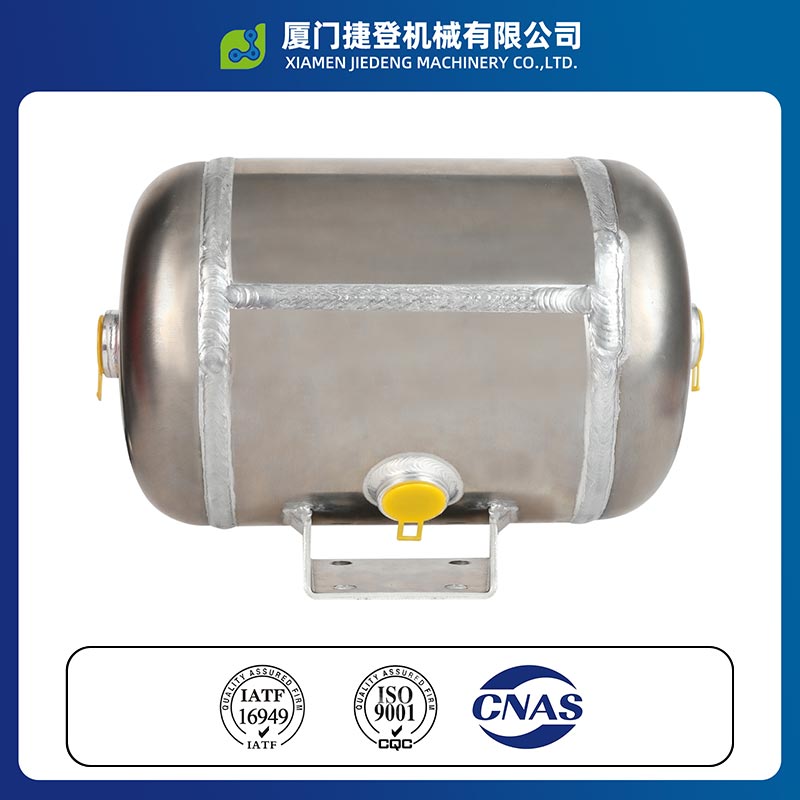

This 3513GZQ-030 Bus air tank is directly supplied by the factory of Xiamen Jiedeng Machinery Co., Ltd. in China. It is made of high-strength aluminum alloy, with a size of φ280×544 millimeters and a capacity of 30 liters, and the working pressure is 1.0 megapascal.
As a highly reliable pneumatic gas cylinder and chassis gas cylinder, it can be universally compatible with various commercial vehicles. The reserved standard interfaces facilitate matching with the drain valve to ensure the stable operation of the pneumatic system.
This gas cylinder is safe and durable, and is widely used in buses, trucks and other commercial vehicles.
| Item | Specification |
| JD Code | 3513GZQ-030 |
| Size | φ280*544 |
| Volume | 30L |
| Working Air Pressure | 1.0MPa |
| Mounting Holes | 1 pc M22×1.5, 6 pcs NPT3/8 Female Thread |
| Material | Aluminum Alloy |
| Bracket Mounting Holes | 200×80, 4 pcs φ11 mounting holes |
The 3513GZQ-030 type vehicle-mounted pneumatic air tank is made of high-strength aluminum alloy as a whole. The outer diameter of this storage tank is 280 millimeters, the total length is 544 millimeters, the nominal capacity is 30 liters, the rated working pressure is 1.0 megapascal, and it fully complies with the industry technical standard QC/T-200-2015.

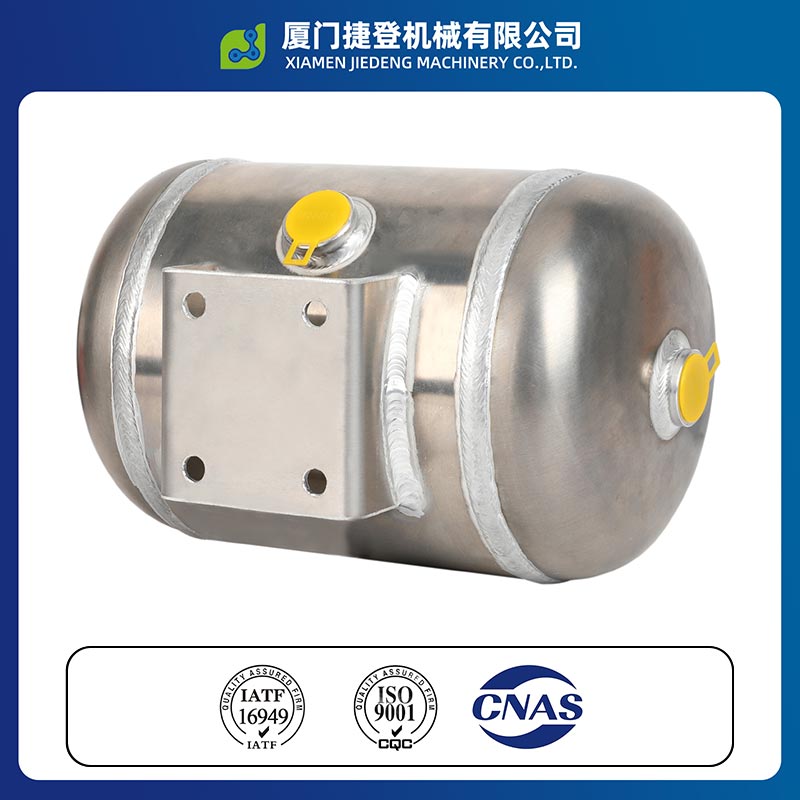

This product is equipped with an integrated reinforced bracket assembly. The installation hole size of the bracket is 200×80 millimeters, and it has four reserved installation holes of Φ11 specification to ensure a firm chassis fixation and excellent vibration resistance performance.
Through the reasonable design of the interface layout, this storage tank is equipped with one M22×1.5 main thread interface and six NPT3/8 type female thread interfaces, which are compatible with most commercial vehicle pneumatic pipelines.
As a reliable pneumatic air storage tank, it can stably store and deliver compressed air, providing support for the braking system and ensuring the stable operation of vehicle pneumatic components.
The storage tank has precise welding seams and qualified internal cleanliness. All threads are completely sealed before delivery and have undergone strict pressure resistance and air tightness tests.

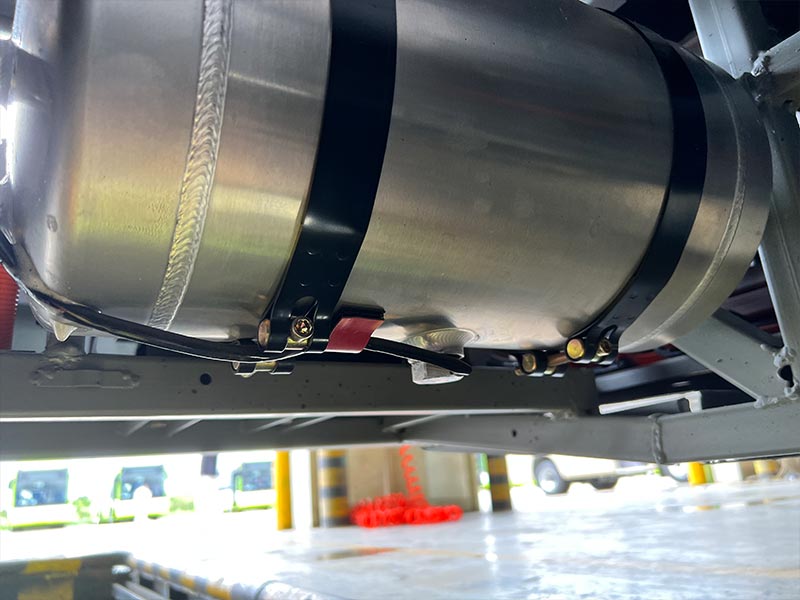

It is suitable for chassis installation of passenger cars, commercial vehicles and other vehicles, and has excellent durability and safety.
As a high-performance bus air tank for passenger vehicles, it is suitable for the braking and door pneumatic control systems of urban and passenger buses.
It can meet the pressure storage requirements of pneumatic devices such as chassis air braking devices and air horns, and is suitable for medium and heavy-duty trucks as well as logistics transportation vehicles.
Compatible with various wheeled excavators, sanitation vehicles, water spraying vehicles and engineering operation vehicles' on-board pneumatic actuators.
Widely applicable to the complete set of on-board pneumatic auxiliary systems equipped in recreational vehicles and modified commercial vehicles.

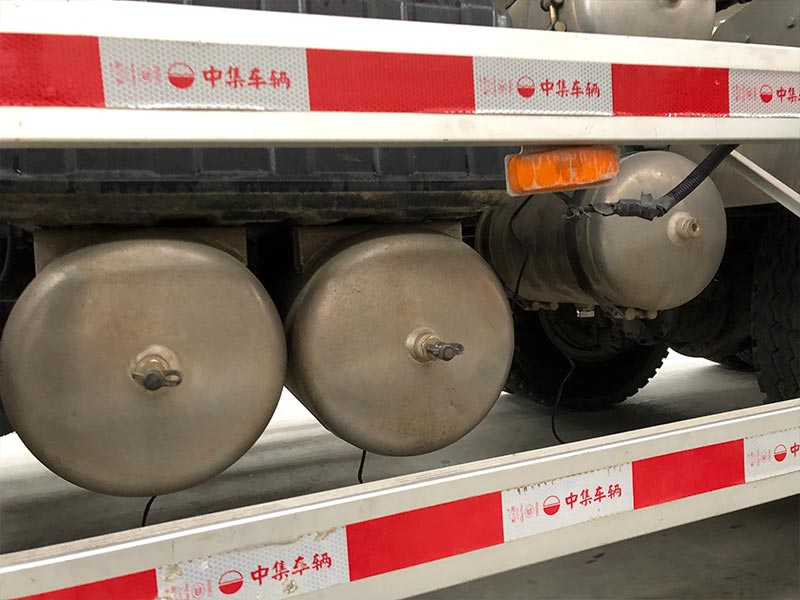

This underbody air tank is the core component of the vehicle-mounted pneumatic system. It receives compressed air from the vehicle-mounted air compressor, stabilizes and buffers pressure fluctuations in the air path, and provides continuous and stable power supply to the entire pneumatic equipment.
As an air tank at the bottom of the vehicle, it is equipped with a standard M22×1.5 threaded interface, facilitating direct and rapid installation of the drain valve. Condensate water inside the tank can be regularly discharged to effectively reduce the risks of corrosion and ice blockage in the air path.
In addition, it ensures the long-term stable operation of core vehicle functions (such as braking, pneumatic gear shifting, and chassis suspension), significantly enhancing the driving safety and component durability of commercial vehicles during long-distance transportation.
